How does a pipe jacking machine handle high-pressure conditions?

2025-06-12 06:21:39

Pipe jacking is a trenchless construction method used to install pipelines underground with minimal surface disruption. This technique is particularly useful in urban areas, under roads, railways, or rivers, where traditional opencut methods are impractical or too disruptive. One of the critical challenges in pipe jacking is handling highpressure conditions, which can arise from groundwater, soil pressure, or other environmental factors. A pipe jacking machine is specifically designed to manage these conditions effectively, ensuring the safety and success of the project. This article explores how pipe jacking machines handle highpressure conditions, focusing on their design, operational mechanisms, and safety features.

1. Understanding HighPressure Conditions in Pipe Jacking

Highpressure conditions in pipe jacking typically occur due to the following factors:

 Groundwater Pressure: In areas with high water tables or proximity to water bodies, the pressure from groundwater can be significant. This pressure can destabilize the excavation face or cause water ingress into the tunnel.

 Soil Pressure: The weight and composition of the soil above the pipeline can exert considerable pressure. In cohesive soils like clay or in granular soils like sand, the pressure can vary but must be managed to prevent collapse.

 Depth of Installation: As the depth of the pipeline increases, the overburden pressure from the soil and water above also increases, creating highpressure conditions.

 Geological Features: Presence of rock layers, boulders, or other hard materials can increase the pressure on the machine and the pipeline.

To handle these challenges, pipe jacking machines are equipped with specialized features and systems.

2. Design Features of Pipe Jacking Machines for HighPressure Conditions

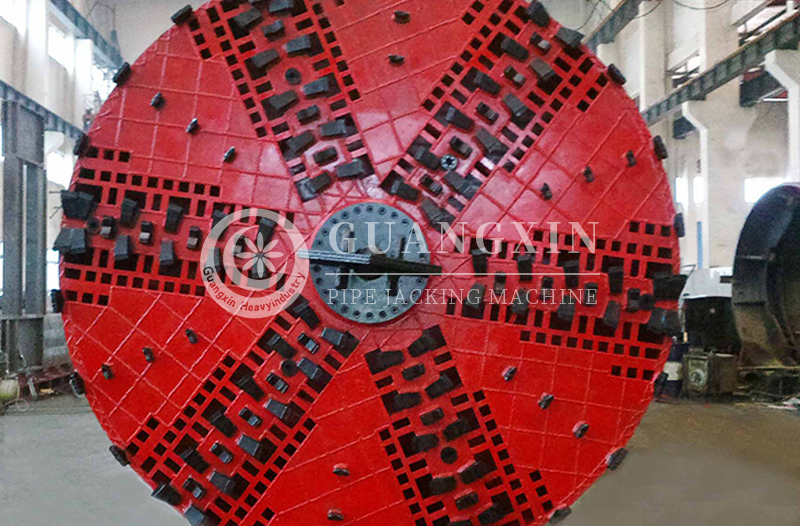

a. Sealed Cutterhead and Pressure Chamber

The cutterhead of a pipe jacking machine is designed to be sealed, preventing water and soil from entering the machine. In highpressure conditions, the cutterhead is equipped with a pressure chamber that maintains a balance between the external pressure and the internal pressure within the machine. This balance prevents the collapse of the excavation face and minimizes the risk of water ingress.

b. Slurry Shield or Earth Pressure Balance (EPB) System

Pipe jacking machines often use either a slurry shield or an Earth Pressure Balance (EPB) system to manage highpressure conditions.

 Slurry Shield: In this system, a slurry (a mixture of water and bentonite or other additives) is pumped into the excavation face to stabilize it. The slurry creates a pressurized barrier that counteracts the external pressure, preventing soil and water from entering the machine. The slurry also helps transport excavated material out of the tunnel.

 Earth Pressure Balance (EPB) System: The EPB system uses the excavated soil itself to create a pressure balance. The soil is mixed with additives to form a paste, which is then used to pressurize the excavation face. This system is particularly effective in cohesive soils and can handle highpressure conditions by maintaining a stable face.

c. Thrust and Jacking System

The thrust system of a pipe jacking machine is designed to exert sufficient force to push the pipeline through the ground, even under highpressure conditions. Hydraulic jacks are used to generate the necessary thrust, and the system is equipped with pressure sensors to monitor and adjust the force as needed. This ensures that the machine can advance smoothly without causing damage to the pipeline or the surrounding soil.

d. Tail Seal and Lubrication System

To prevent water and soil from entering the tunnel through the gap between the pipeline and the machine, a tail seal is installed. This seal is designed to withstand highpressure conditions and maintain the integrity of the tunnel. Additionally, a lubrication system is used to reduce friction between the pipeline and the surrounding soil, which is especially important in highpressure environments where the friction forces can be significant.

3. Operational Mechanisms for Handling High Pressure

a. RealTime Monitoring and Control

Modern pipe jacking machines are equipped with advanced monitoring and control systems that provide realtime data on pressure, thrust, and other critical parameters. Sensors placed on the cutterhead, pressure chamber, and thrust system continuously monitor the conditions and send data to the control room. Operators can adjust the machine's settings based on this data to maintain optimal performance under highpressure conditions.

b. Adaptive Cutterhead Design

The cutterhead of a pipe jacking machine is designed to adapt to different soil and pressure conditions. In highpressure environments, the cutterhead may be equipped with additional cutting tools or wearresistant materials to ensure efficient excavation. The rotation speed and torque of the cutterhead can also be adjusted to handle varying pressures and soil types.

c. Emergency Systems

In case of sudden changes in pressure or other emergencies, pipe jacking machines are equipped with failsafe systems. For example, if the pressure in the excavation face drops unexpectedly, the machine can quickly inject additional slurry or soil paste to stabilize the face. Similarly, if the thrust system detects excessive resistance, it can automatically reduce the force to prevent damage to the pipeline or the machine.

4. Safety Features for HighPressure Conditions

a. Pressure Relief Valves

Pressure relief valves are installed in the pressure chamber and other critical areas of the machine to prevent overpressurization. If the pressure exceeds a safe threshold, the valves automatically release the excess pressure, protecting the machine and the pipeline from damage.

b. Backup Power Systems

In highpressure conditions, a power failure could lead to a loss of pressure control, resulting in a collapse or water ingress. To prevent this, pipe jacking machines are equipped with backup power systems that ensure continuous operation even in the event of a power outage.

c. Emergency Evacuation Plans

In extreme cases where highpressure conditions cannot be managed, pipe jacking machines are designed with emergency evacuation plans. Workers can quickly exit the tunnel through designated escape routes, and the machine can be shut down safely to prevent further risks.

5. Case Studies and Examples

Several successful pipe jacking projects have demonstrated the effectiveness of these features in handling highpressure conditions. For example, in the construction of a pipeline under a river with a high water table, a slurry shield pipe jacking machine was used to maintain pressure balance and prevent water ingress. The project was completed without any incidents, thanks to the machine's advanced monitoring and control systems.

In another project involving the installation of a pipeline through dense clay soil at a significant depth, an EPB pipe jacking machine was used. The machine's adaptive cutterhead and thrust system allowed it to handle the high soil pressure, and the project was completed on schedule.

6. Conclusion

Handling highpressure conditions is one of the most critical aspects of pipe jacking, and modern pipe jacking machines are specifically designed to meet this challenge. Through features such as sealed cutterheads, pressure chambers, slurry shields, EPB systems, and advanced monitoring and control systems, these machines can effectively manage highpressure environments. Additionally, safety features like pressure relief valves, backup power systems, and emergency evacuation plans ensure that the project can be completed safely and efficiently. As trenchless construction methods continue to evolve, pipe jacking machines will remain an essential tool for managing highpressure conditions in underground pipeline installation.
